Motion Chain of Thought: Disentangling Motion Semantics from Visual Representations for Robotic Manipulation

Overview

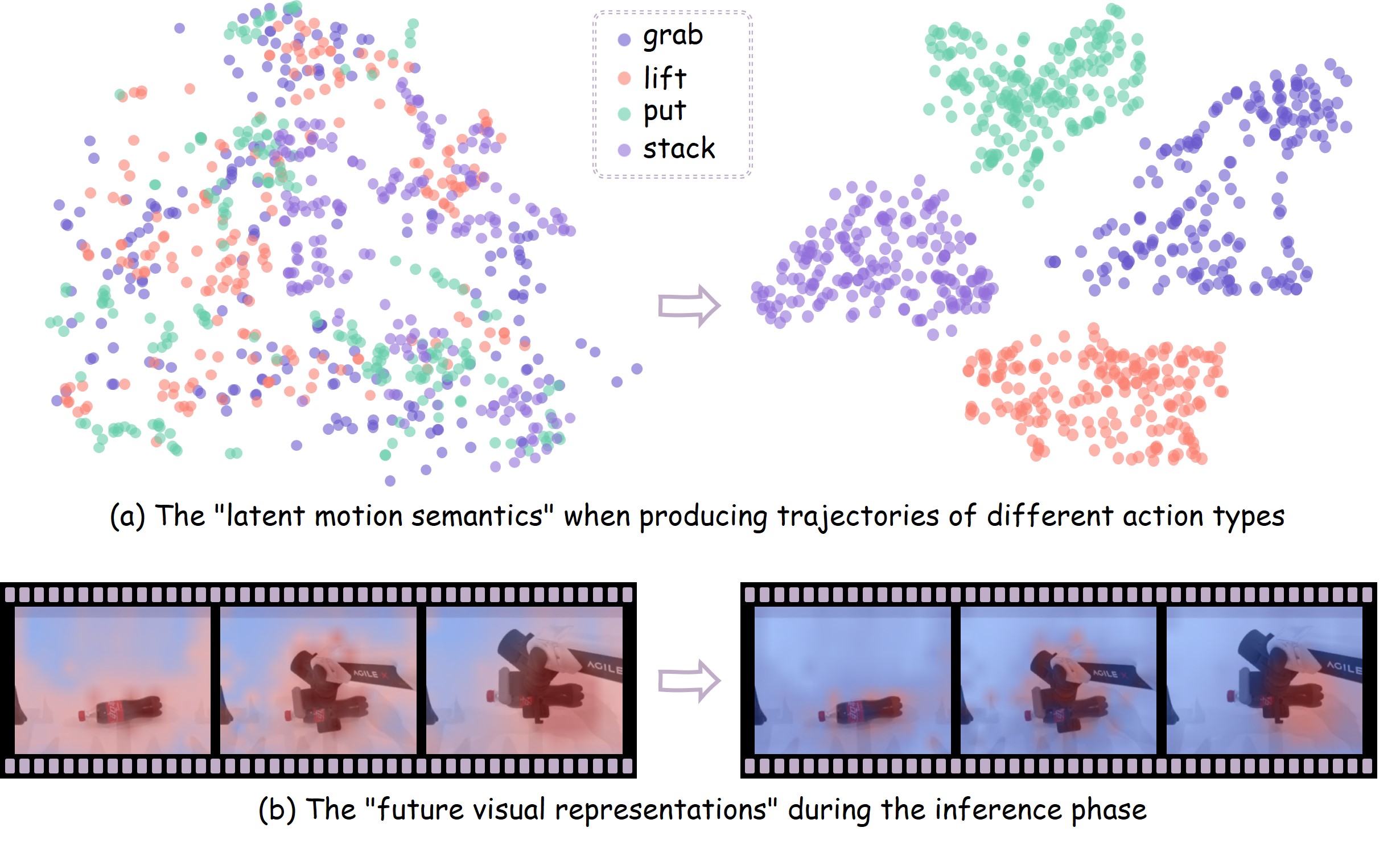

Predicting what a future image looks like is not the same as understanding how an action changes the world. Visual reconstruction can entangle background appearance with motion, forcing the action model to infer high-level state evolution and low-level motor commands from the same representation. PILOT addresses this with Motion Chain of Thought (Motion-CoT): learnable latent tokens that separate motion semantics from fine-grained trajectory generation.

Representational Deduction (RD) supervises these tokens through a Causal Dynamics Engine (CDE), which predicts future states in a frozen VJEPA2-AC representation space. Causally-decoupled attention lets motion semantics guide action decoding without absorbing action diffusion noise. Future observations are supervision targets, not inference inputs; neither future-frame generation nor the CDE is needed to execute the policy.

PILOT reaches 58.3% average success across 24 RoboCasa-GR1 tasks and 82.5% across eight standard real-world tasks. On the Pen task only, it reaches 68.0% mean success across three visual generalization conditions and 78% with only 10% of the Pen demonstrations, compared with its 90% full-data Pen reference.

Method

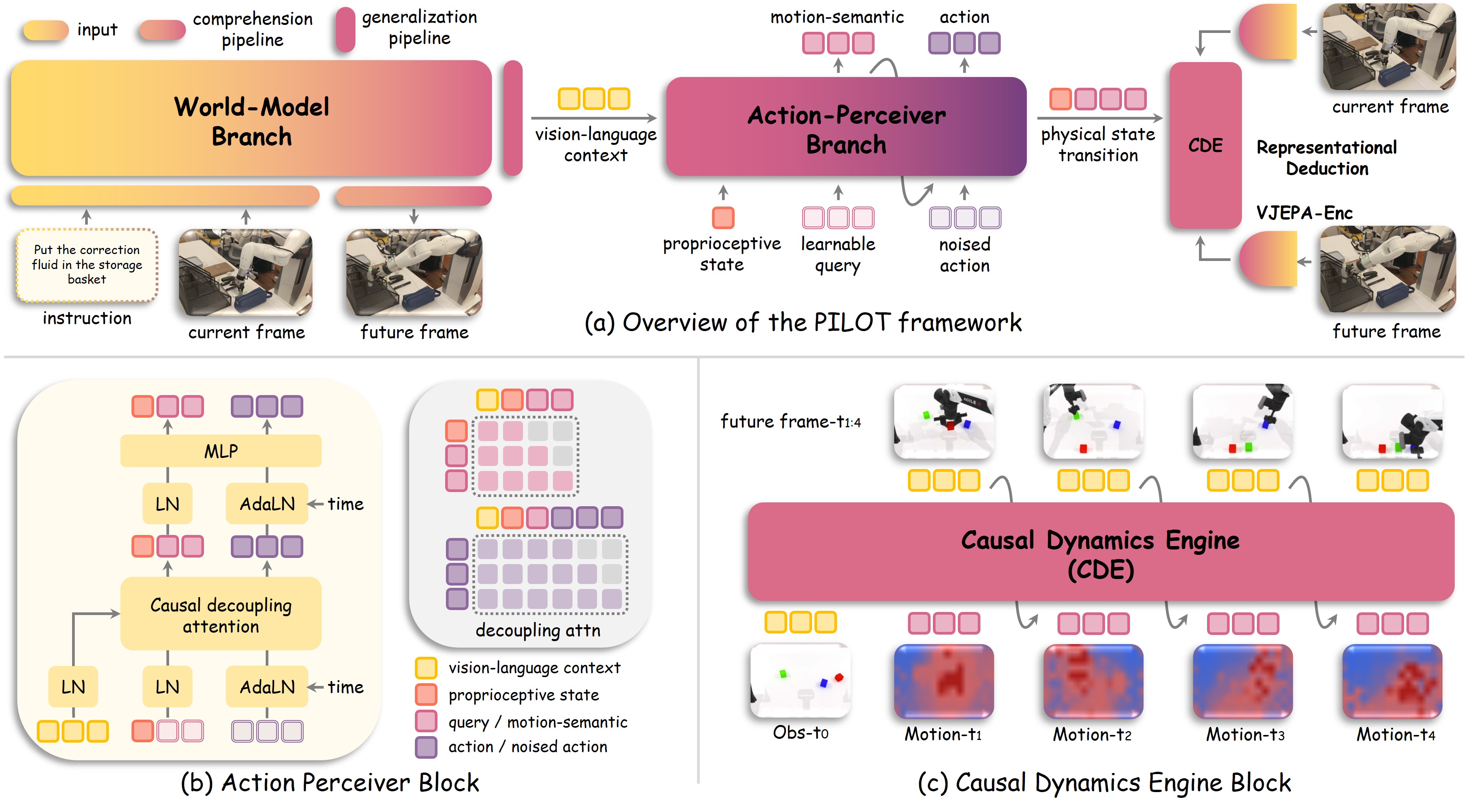

PILOT framework overview. — The **World-Model** encodes the current observation and instruction; the **Action-Perceiver** distills Motion-CoT with learnable queries and uses it to guide flow-matching action decoding. During training, the **CDE** predicts future VJEPA2-AC representations conditioned on the current representation, motion semantics, and robot state.

1

Learn Motion-Semantic Tokens

A single understanding pass through the Cosmos-Predict2.5 backbone encodes the current observation and instruction. A set of 64 learnable queries distills high-level motion semantics from this context.

2

Supervise State Transitions

Representational Deduction trains the CDE to predict the frozen encoder's future-state representation from the current one, conditioned on Motion-CoT and proprioception. A Smooth L1 objective teaches the queries what changes under an action, rather than how pixels should look.

3

Refine Actions Without Noise Leakage

Causally-decoupled attention allows action tokens to attend to motion semantics, but blocks the reverse flow of action noise into the query tokens. Flow-time conditioning is applied only to action tokens, so the motion context remains stable during trajectory refinement.

World-Model Branch

Cosmos-Predict2.5 provides a 196-token vision-language context. Auxiliary future-frame prediction preserves the pretrained visual and physical prior during training.

Action-Model Branch

A Perceiver-style flow-matching head learns motion semantics and decodes continuous action chunks. At inference, it uses only the current observation, instruction, and robot state.

Training-Only RD Branch

The frozen VJEPA2-AC encoder supplies 256 patch tokens of dimension 1408. The trainable CDE predicts the future representation, and is omitted from the policy's inference path.

Experiments

RoboCasa-GR1 and real-world manipulation on Agibot-G1. Success rates (%) reproduce the manuscript's Tables 3, 4, and 11. Real-world generalization and few-shot evaluation use the Pen task only, separately from the eight-task standard average.

RoboCasa-GR1: 24 Tasks Across Five Categories

Method	PnP Close (6)	From Cuttingboard (5)	From Placemat (4)	From Tray (5)	From Plate (4)	Overall Average
GR00T N1.5	45.3	46.4	45.5	48.8	56.5	48.2
GR00T N1.6	24.2	56.9	51.9	55.1	57.6	47.6
DiT4DiT	50.3	57.6	39.0	46.4	60.0	50.8
UWM-XL	30.7	17.4	10.0	17.2	16.3	19.3
QwenGR00T	50.3	52.8	38.0	39.2	58.5	47.8
LDA	56.3	64.2	47.8	53.4	53.0	55.4
VP-VLA	54.3	60.8	54.5	46.0	53.5	53.8
PhysBrain-4B	52.7	52.0	48.0	46.0	62.5	52.0
LangForce	55.7	53.2	48.0	47.2	58.5	52.6
PILOT (Ours)	57.0	62.4	48.5	64.8	57.0	58.3

Manuscript Table 3. PILOT is evaluated with 50 rollouts per task and reaches 58.3% overall, compared with 55.4% for LDA. Category scores average their constituent tasks; the overall average weights all 24 tasks equally (category weights 6:5:4:5:4). PILOT reaches 57.0% on PnP Close and 64.8% on Tray.

All 24 RoboCasa-GR1 Tasks and Baselines

Manuscript Table 11. PnP = pick and place; Nv = novel; CB = cuttingboard; PM = placemat; TR = tray; PL = plate; CbBox = cardboard box; TBasket = tiered basket; TShelf = tiered shelf; Cab. = cabinet; Micro. = microwave. All reported values and averages are retained. QwenGR00T is the Qwen3-VL-based GR00T-style baseline, not StarVLA-alpha; PhysBrain denotes PhysBrain-4B.

Task	GR00T N1.5	GR00T N1.6	DiT4DiT	UWM-XL	QwenGR00T	LDA	VP-VLA	PhysBrain-4B	LangForce	PILOT (Ours)
PnP Close
PnP Bottle to Cab.	54	51.5	48	41	46	76	54	74	72	64
PnP Can to Drawer	50	13	74	53	80	71	72	68	78	64
PnP Cup to Drawer	38	8.5	52	12	54	41	44	42	46	34
PnP Milk to Micro.	60	14	50	25	48	52	74	54	56	76
PnP Potato to Micro.	32	41.5	36	29	28	41	34	24	36	54
PnP Wine to Cab.	38	16.5	42	24	46	57	48	54	46	50
PnP Close (Avg)	45.3	24.2	50.3	30.7	50.3	56.3	54.3	52.7	55.7	57.0
PnP Novel From Cuttingboard
NvCB to Basket	38	58	52	18	48	65	66	62	66	76
NvCB to CbBox	46	46.5	48	14	40	69	54	44	40	42
NvCB to Pan	58	68.5	76	20	68	75	74	56	68	86
NvCB to Pot	62	65	62	25	52	61	54	58	48	78
NvCB to TBasket	28	46.5	50	10	56	51	56	40	44	30
Cuttingboard * (Avg)	46.4	56.9	57.6	17.4	52.8	64.2	60.8	52.0	53.2	62.4
PnP Novel From Placemat
NvPM to Basket	30	58.5	50	16	42	53	48	42	54	78
NvPM to Bowl	60	57.5	56	10	44	55	74	56	62	46
NvPM to Plate	56	63	32	12	48	59	70	80	52	44
NvPM to TShelf	36	28.5	18	2	18	24	26	14	24	26
Placemat * (Avg)	45.5	51.9	39.0	10.0	38.0	47.8	54.5	48.0	48.0	48.5
PnP Novel From Tray
NvTR to CbBox	52	51.5	38	25	38	65	44	40	50	76
NvTR to Plate	48	71	56	18	56	63	66	66	58	72
NvTR to Pot	60	64.5	54	25	50	55	38	52	62	92
NvTR to TBasket	52	57	46	16	36	51	58	50	44	54
NvTR to TShelf	32	31.5	38	2	16	33	24	22	22	30
Tray * (Avg)	48.8	55.1	46.4	17.2	39.2	53.4	46.0	46.0	47.2	64.8
PnP Novel From Plate
NvPL to Bowl	58	57	56	8	60	53	52	54	54	42
NvPL to CbBox	44	43.5	58	10	50	43	44	50	48	54
NvPL to Pan	60	51	68	20	54	55	56	68	54	50
NvPL to Plate	64	78.7	58	27	70	61	62	78	78	82
Plate * (Avg)	56.5	57.6	60.0	16.3	58.5	53.0	53.5	62.5	58.5	57.0
Overall average	48.2	47.6	50.8	19.3	47.8	55.4	53.8	52.0	52.6	58.3

82.5%

Standard Manipulation

Average across eight desktop tasks on Agibot-G1, with 50 rollouts per task.

68.0%

Pen-Only Generalization

Mean across Flash + Camera Offset (72%), Desk (68%), and Color (64%).

78%

Pen-Only Few-Shot

Using 10% of Pen demonstrations, compared with 68% for the strongest baseline, π₀.

Agibot-G1: Eight Standard Desk Tasks

Method	Pen	Eraser	Correction Fluid	Charger	Pencil Case	Stapler	Book	Trash	Standard Average
π₀	74	46	42	66	28	64	52	74	55.8
GR00T-N1.7	38	52	30	64	24	74	80	82	55.5
π_0.5	88	64	86	82	40	70	84	76	73.8
PILOT (Ours)	90	96	70	94	56	88	72	94	82.5

Manuscript Table 4, standard evaluation: 50 rollouts per task. The standard average is the arithmetic mean across all eight tasks. PILOT reaches 82.5% overall; its 90% Pen score is the full-data reference for the task-matched generalization and few-shot results below.

Agibot-G1: Pen-Only Generalization and Few-Shot Learning

Method	Flash + Camera Offset	Desk	Color	Generalization Average	Few-Shot (10% Pen Data)
π₀	46	54	62	54.0	68
GR00T-N1.7	18	24	28	23.3	30
π_0.5	62	58	70	63.3	66
PILOT (Ours)	72	68	64	68.0	78

Manuscript Table 4, Pen task only. Flash + Camera Offset changes lighting and viewpoint; Desk replaces the surface; Color changes object colors. The generalization average covers these three conditions. Few-shot fine-tuning uses 10% of Pen demonstrations and is a separate setting, not part of that average. PILOT's 78% few-shot success is compared with its 90% full-data Pen success, not the 82.5% average across standard tasks.

Demonstration in the real world

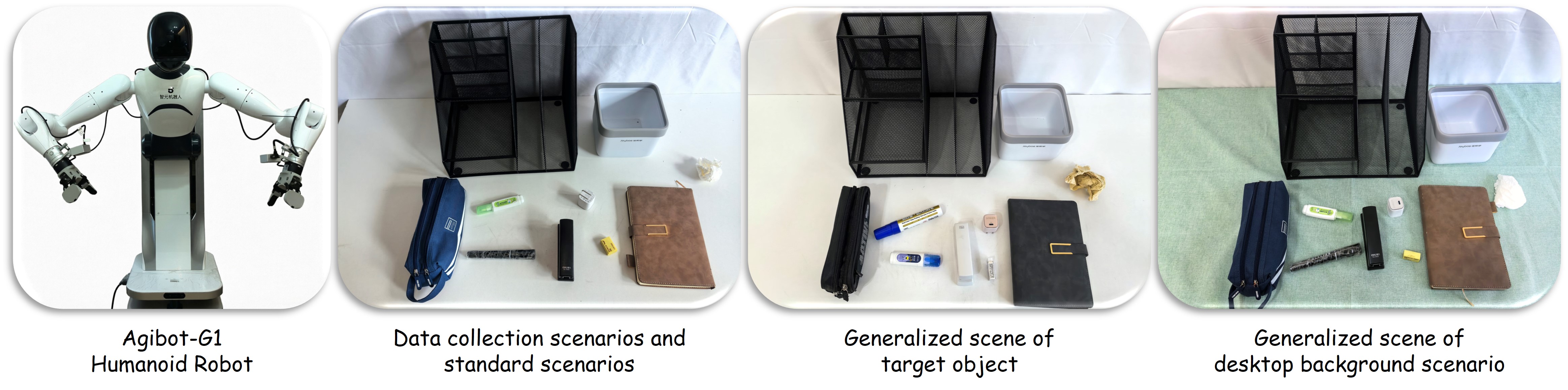

Agibot-G1 humanoid robot and test environment. — The Agibot-G1 dual-arm humanoid and desktop evaluation scenes. The eight tasks involve pen insertion, object grasping and placement, upright book placement, and trash disposal.

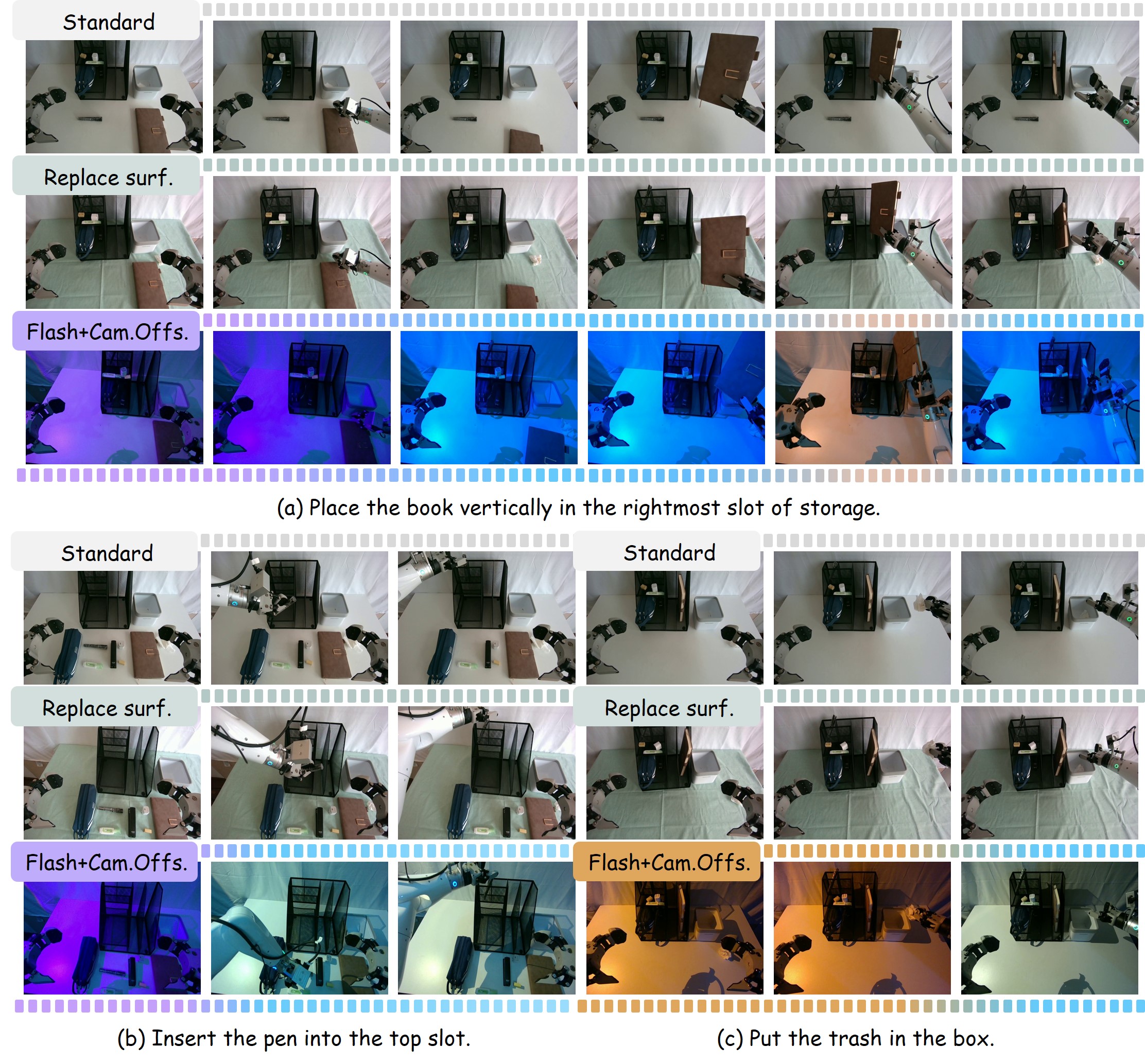

Evaluation tasks and generalization settings. — Qualitative book, pen, and trash manipulation sequences under standard, replaced-surface, and flash-plus-camera-offset conditions. These multi-task illustrations are distinct from the Pen-only quantitative generalization evaluation above.

First-Person View Videos

Standard

Pen

Eraser

Corr. Fluid

Charger

Pencil Case

Stapler

Book

Trash

Flash + Cam. Offset

Pen (Flash)

Book (Flash)

Stapler (Flash)

Trash (Flash)

Desk Change

Pen (Desk)

Eraser (Desk)

Book (Desk)

Stapler (Desk)

Color Variation

Stapler (Color)

Trash (Color)

Book (Color)

Charger (Color)

First-person qualitative demonstrations across standard tasks and changed visual conditions. Flash + Camera Offset changes lighting and viewpoint; Desk replaces the table surface; Color changes object appearance. These multi-task videos are illustrative, not the Pen-only quantitative generalization evaluation reported in Table 4.

RoboCasa-GR1 Demonstrations

PnP Close

Bottle to Cabinet

Can to Drawer

Cup to Drawer

Milk to Microwave

Novel From Cuttingboard

To Basket

To Cardboardbox

To Pan

To Pot

Novel From Placemat

To Basket

To Bowl

To Plate

To Tieredshelf

Novel From Tray

To Cardboardbox

To Plate

To Pot

To Tieredbasket

Novel From Plate

To Bowl

To Cardboardbox

To Pan

To Plate

Selected rollouts from the 24-task RoboCasa-GR1 evaluation. PILOT achieves 58.3% reported average success; full category and per-task comparisons are available in the Experiments section.

Code, Weights & Reproducibility

The release selects the original 340000-step RoboCasa-GR1 checkpoint, with its compatible training code, fixed evaluation protocol, customized simulator, and recorded evidence. Other benchmark and real-robot checkpoints are not bundled.

Released checkpoint / repaired-protocol source evaluation 59.75% 717 successes / 1200 episodes · 24 tasks × 50 seeds

This source-run audit is separate from the manuscript's 58.3% result. It is not a new installation benchmark. Success is measured at any executed physical step; successful episodes are not terminated early.

01 / Source

Training & Evaluation Code

The selected model, data interface, policy service, simulator wrapper, CPU tests and reproducibility tools.

Explore GitHub →

02 / Model · Public

Original 340000 Weights

The 23.91 GB checkpoint, SHA-256 verification, metadata and constructor component preparation. The repository ID remains WM4A; the release is PILOT.

Open Hugging Face → Browse checkpoint →

03 / Environment

Customized RoboCasa-GR1

A 4.53 GB archive with 45,853 simulator and robot resource files, plus separate policy/simulation environment setup.

Installation guide → Simulator archive →

04 / Evaluate

Smoke Test To Full Benchmark

Linux/CUDA/EGL setup, explicit GPU allocation, 24-task commands, scoring semantics, expected outputs and troubleshooting.

Evaluation guide →

05 / Train

Fine-Tune Or Resume

Dataset layout, archived hyperparameters, original-pretrained initialization, weight-only fine-tuning and complete-state resume. Demonstrations are not bundled.

Training guide →

06 / Evidence · Public

Logs You Can Audit

24 task logs, 1200 episode diagnostics and 680 historical training metric records. Verify recorded counts without downloading the model.

Evidence and redactions → Download logs (1.93 MB) →

Public access checked September 30, 2026: the Hugging Face repository is public and ungated. Checkpoint and simulator range downloads passed without an account or access token. Browse all model and environment files or follow the installation guide.

Verification scope: a CPU log audit is not action regeneration. Raw per-request streams are not in the log archive. Fresh Linux/CUDA package reproduction, long-run training convergence and multi-rank exact resume remain unverified. Read the validation limits and component-specific licenses.

BibTeX

@unpublished{pilot2026,
  title = {Motion Chain of Thought: Disentangling Motion Semantics from
           Visual Appearance for Robotic Manipulation},
  author = {{Anonymous Authors}},
  year = {2026},
  note = {ICLR 2027 submission, under review}
}
